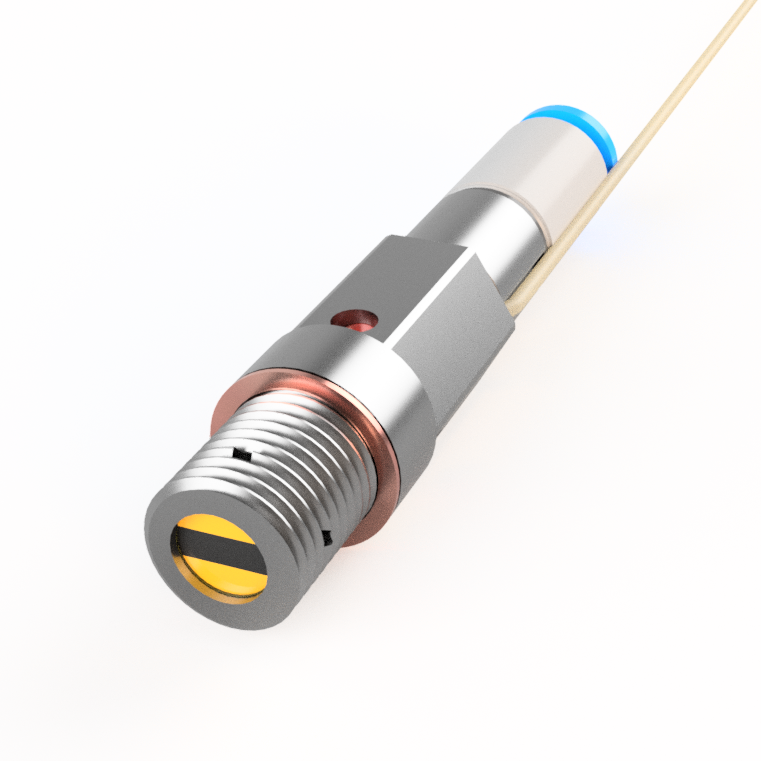

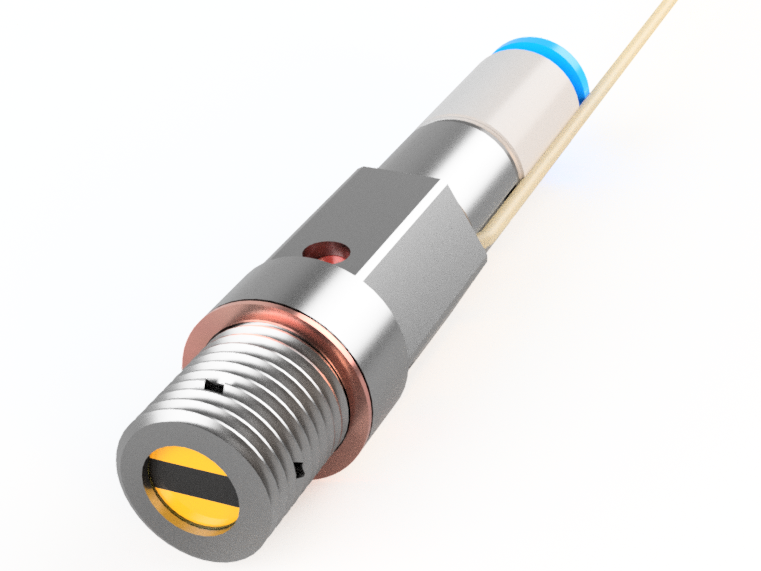

Heat Flux Sensor M5
Our Heat Flux Sensor M5 module is the ideal solution for applications where space is at a premium. As smaller sibling of the M8, the M5 delivers exceptional performance as a heat flux sensor in a design optimized for compact environments. Its stainless steel housing ensures a pressure-tight construction, and an optional pressurized air cooling system enhances its thermal stability in demanding conditions. Dimensionally compatible and easily interchangeable with most commercial pressure sensors, the M5 ensures smooth integration into existing systems. Each rented sensor module is factory-calibrated ensuring consistent performance.
Specifically designed for extreme environments, the M5 excels under intense heat loads. Its compact size does not compromise its ability to deliver precise and reliable measurements, making it the trusted choice for cutting-edge research and industrial applications.
Explore how the M5 redefines compact performance by reviewing our example data and seeing the results firsthand.
Specifications:
- Sensor thread with M5x0.5 threading. Sensor length 20 mm
- Customizable cooling solutions to match the requirements of your measurement campaign
- Customizable signal connection and amplifier system
- Short pulse temperatures up to 4000 K
- Permanent temperatures up to 180 °C
- Pressure resistant up to 50 bar
Rental Price Calculator
Sensor Module M5
0 €
Amplifier
Amplifier Features
Enhance your measurement quality with our professional amplifier
Signal Boost
Amplification from 10x to 4000x for clearer signals with at least 1MHz Bandwidth
Low Noise
Advanced noise suppression technology and USB-C powered
Universal Compatibility
Works with all Hudyne sensor modules
Plug and Play
Simple setup without configuration
0 €
Insurance
Your Insurance Benefits
Zero Deductible
No unexpected expenses, complete cost transparency
Comprehensive Protection
Full coverage for sensors, accessories, and peripherals
Fast Replacement Service
Minimize downtime with quick replacements
Protection Included
Covered against over-temperature, impacts, and water damage
0 €
Total Price:
0 €
Price per Week:
0 €
Technical drawings and instruction manuals are available upon request. For more details contact info@hudyne.com or fill out our contact form.
