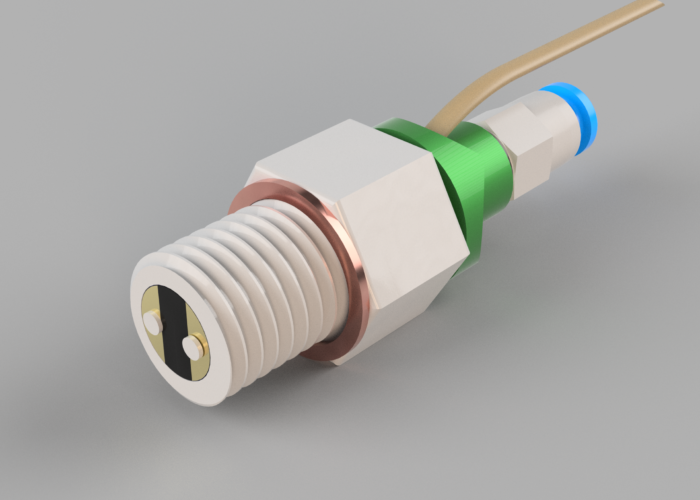

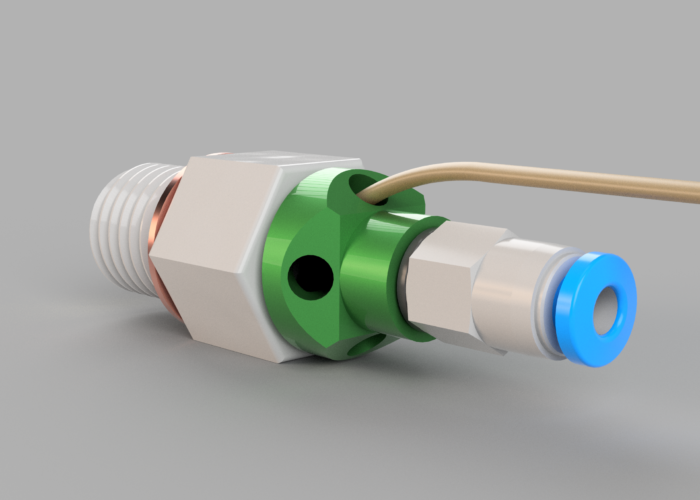

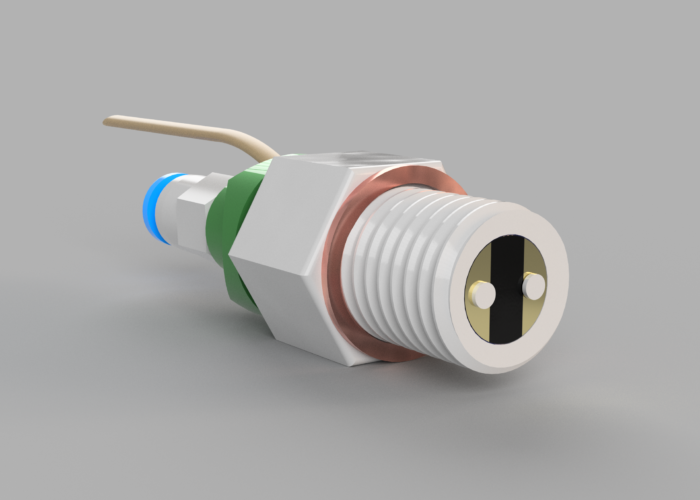

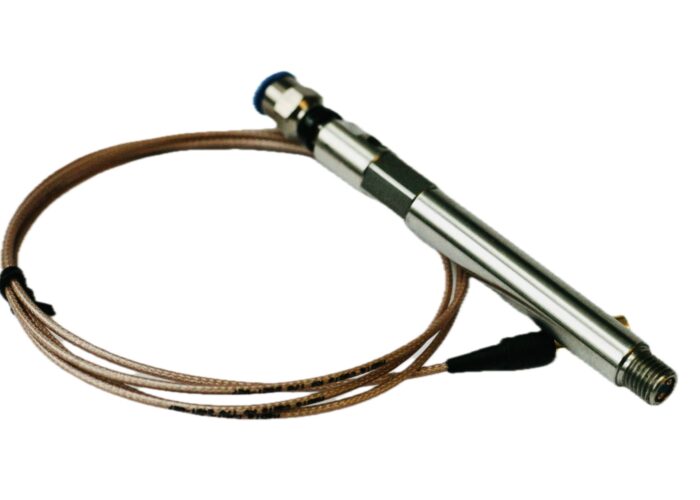

Heat Flux Sensor M8

The Heat Flux Sensor M8 module is the perfect choice for even the most demanding measurement tasks. The sensor is housed in durable stainless steel and can be optionally equipped with internal active signal amplification and a specialized pressurized air cooling system. Tested under the extreme conditions of rotating detonation engines (RDE) and engine combustion cycles, it consistently proves its reliability and durability under high heat loads. We invite you to review our example data and explore the innovative measurement results for yourself.

Specifications:

Sensor thread mountable with an M8x1 threading. Sensor length of 15 – 100 mm depending on the configuration
Customizable cooling solutions to match the requirements of your measurement campaign

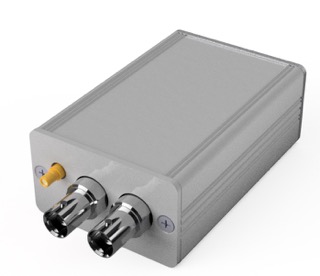

Customizable signal connection and amplifier system
Short pulse temperatures up to 4000 K
Permanent temperatures up to 180 °C
Pressure resistant up to 50 bar
